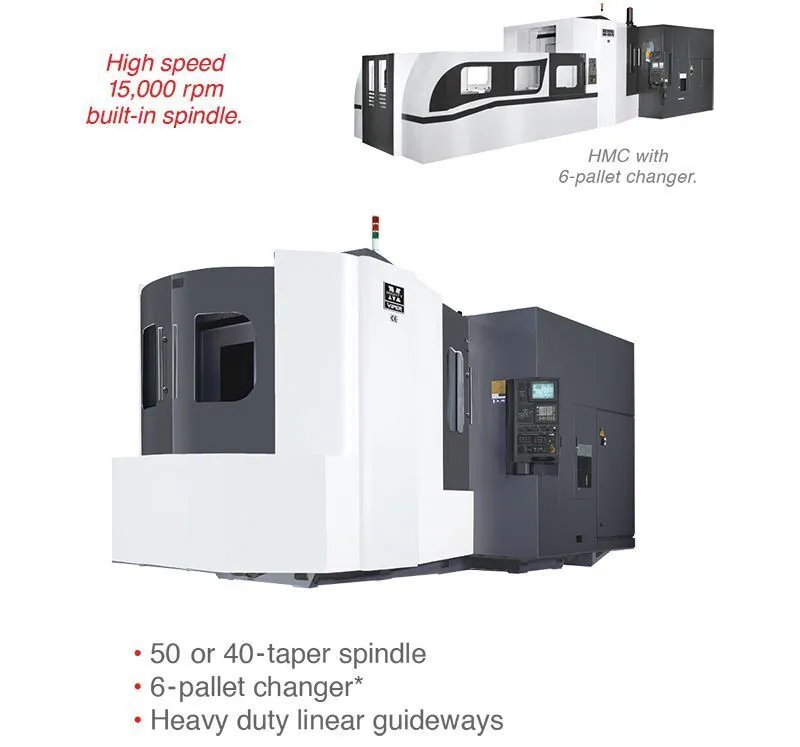

MIGHTY VIPER HMC - High speed 15,000 rpm build-in spindle.

Performance Specifications
Machine Model (#40)
500 (#50)
500 630 800 1000
X-Travel 28 28 41 55 67
Y-Travel 25 25 32 47 55
Z-Travel 25 25 32 52 60
Pallet Size 20×20 20×20 25×25 31×31 39×39
Nose Taper #40 #50 #50 #50 #50
Speed DDS (rpm) 10,000 6,000 6,000 – –
Speed Built-in (rpm) 15,000* 10,000* 10,000* 10,000 10,000
Speed Gear (rpm) – – – 6,000* 6,000*
Drive Motor** 15 / 20* 35 / 40* 35 / 40* 30 / 35* 30 / 35*
Speed Built-in (rpm) 15,000* 10,000 10,000 10,000 10,000
Drive Motor** 25 / 30* 35 / 40* 35 / 40* 35 / 40* 35 / 40*
Unit= inch | *Optional accessory | **30 minute rating

Available Models: 500, 630, 800, 1000
