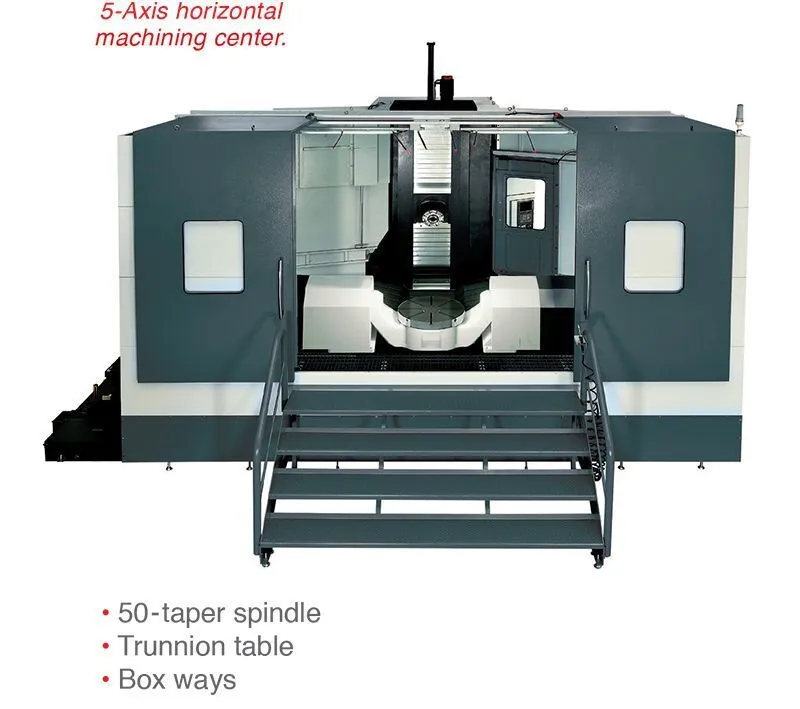

MIGHTY VIPER MH-5TR - 5-Axis horizontal machining center.
ConditionNew
New
Horizontal spindle coupled with A-axis trunnion table and a 8-axis rotary table performs precision machining for complex horizontal parts applications.
Performance Specifications
X-Travel 35~67
Y-Travel 35~65
Z-Travel 47~65
A-Travel ±120° /-30° ~ +120°
B-Travel ±360°
Table Diameter Φ25~Φ51
Nose Taper #50
Speed (Gear) rpm 6000
Speed (DDS) rpm 8000
Drive Motor** (hp) 25/30/47
CNC Control Fanuc I Siemens
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 630, 800, 1100, 1300
