MIGHTY VIPER VTL 600-1100
ConditionNew
New

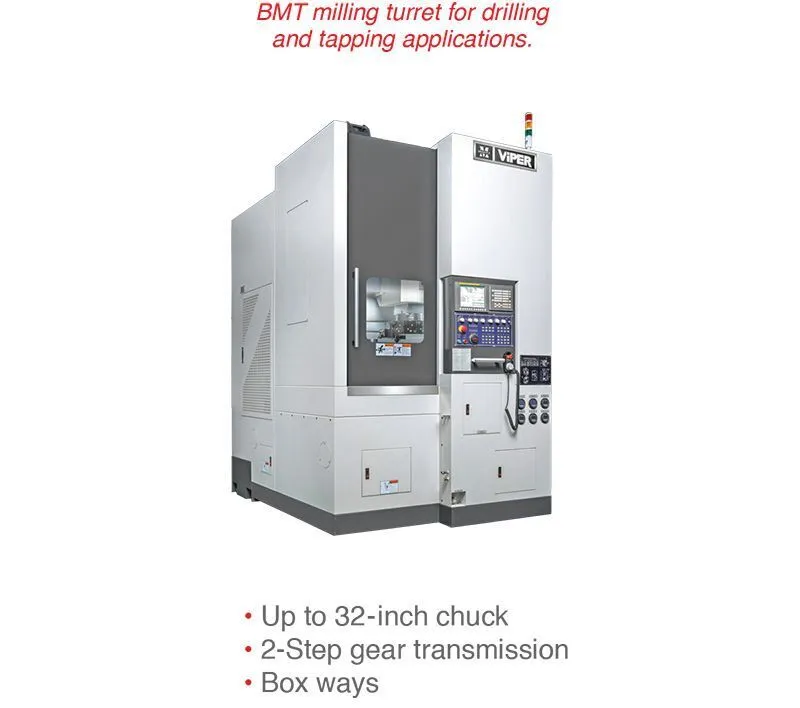

Vertical turning lathe provides efficient cutting coupled with high precision accuracy. Viper feed capacity provides excellent vibration absorption and chatter-free cutting.
Performance Specifications
Machine Model 600 750 900 1100
Chuck Diameter 15 18 24 32
Turning Diameter Max. 24 30 35 43
Swing Max.
28 35 39 51
Turning Height Max. 16 30 33 39
X-Travel
14 16 19 23
Z-Travel
16 39 33 39
Nose Type
A2-8 A2-11 A2-15 A2-15
Speed Range 2-step (hp) 1~2500 1~2000 1~1800 1~850
Drive Motor** (hp) 40 50 60 75
Tooling Station (Static) 12 12 12 12
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 600, 750, 900, 1100
