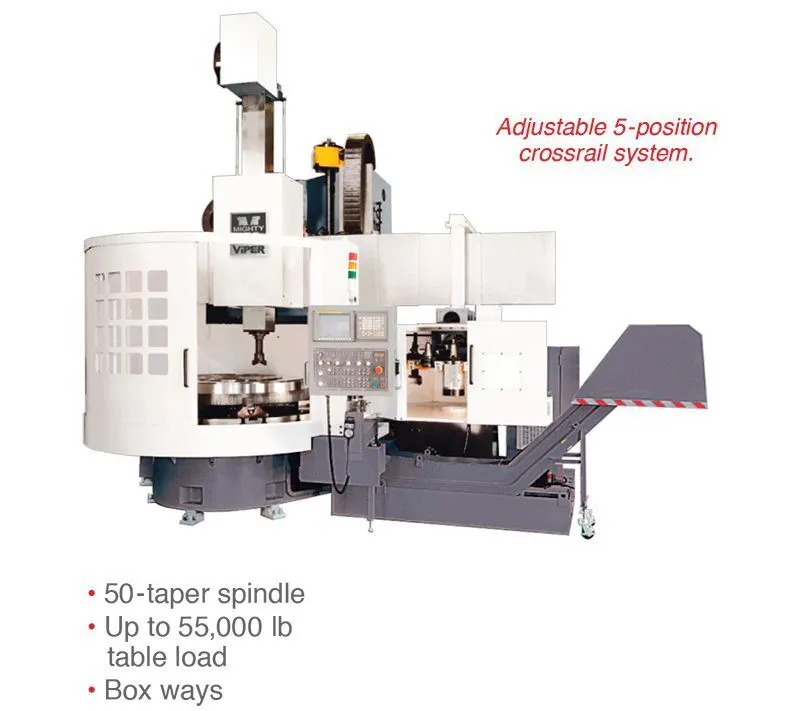

MIGHTY VIPER VTL 1620-2734 - Adjustable 5-position crossrail system.
ConditionNew
New
Designed for large parts turning and features an optional milling function. Specially made for handling heavy table loads.
Performance Specifications
Machine Model 1620 2025 2734
Table Diameter 63 78 106
Turning Diameter Max. 78 96 133
Swing Max.
78 98 133
Table Load Max. (lb) 33,000 44,000 55,000
X-Travel
64 70 105
Z-Travel
39 39 39
Crossrail Stroke 31.5 31.5 39.5
Crossrail Levels inch x step 7.8 x 5 7.8 x 5 7.8 x 6
Speed Range 2-step (rpm) 1~250 1~200 1~100
Main Table Motor** (hp) 60 60 100
ATC Tools 18 18 18
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 1620, 2025, 2734
