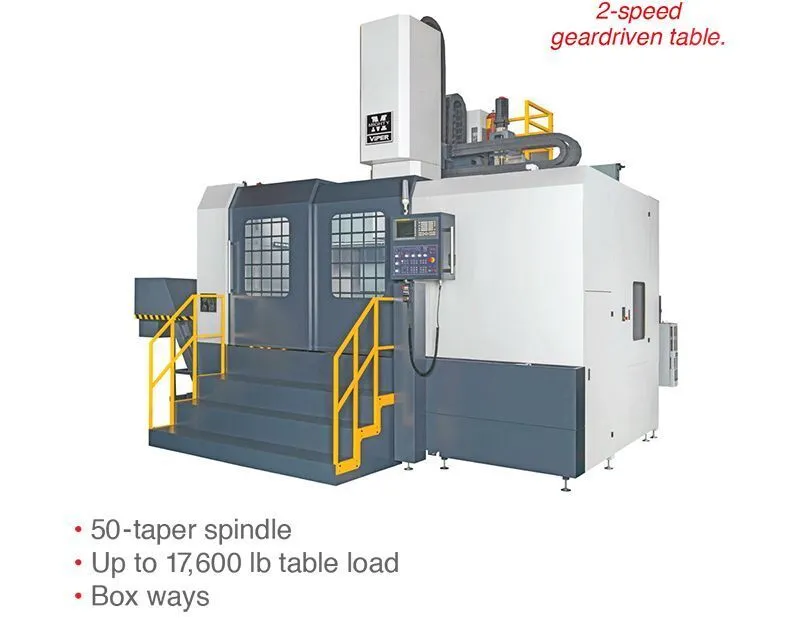

MIGHTY VIPER VTL 1400-2000 - 2-speed geardriven table.
ConditionNew
New
Designed for large parts turning and features an optional milling function. The 1400 ~ 2000 models have a geared table drive that generates powerful table torque.
Performance Specifications
Machine Model 1400 1600 2000
Table Diameter 40 50 63
Turning Diameter Max. 55 63 79
Swing Max.
55 63 79
Table Load Max. (lb) 9,900 12,980 17,600
X-Travel
47 55 64
Z-Travel
32 39 39
Table Speed 2-step (rpm) 1~400 1~350 1~250
Crossrail Stroke Fixed 24 32
Crossrail Levels Fixed 7.8 x 4 7.8 x 5
Main Table Motor** (hp) 50/40 50/40 60/50
ATC Tools 12 18 18
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 1400, 1600, 2000
