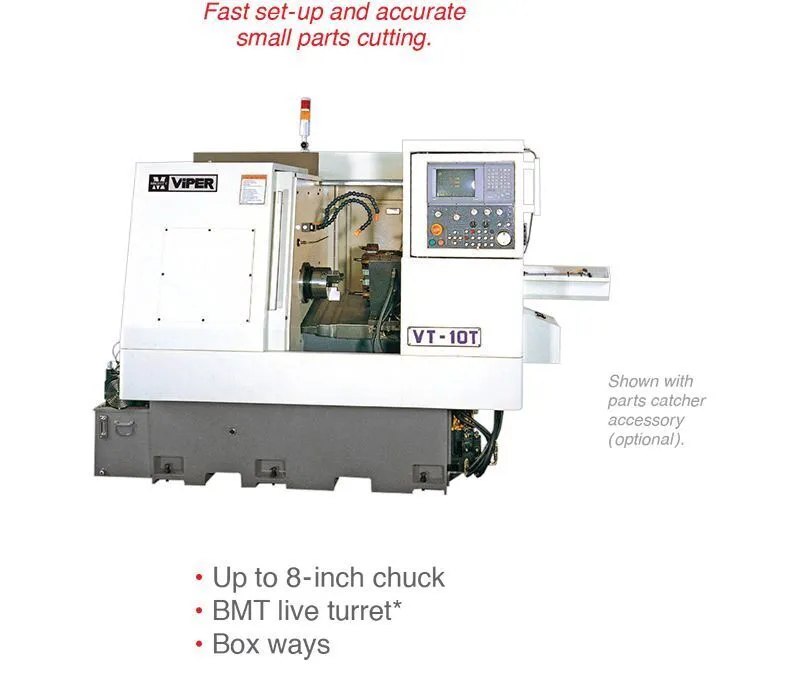

MIGHTY VIPER VT 8-12 - Fast set-up and accurate small parts cutting.

Performance Specifications
Machine Model 8 10 12
Swing Over Bed 12.6 13.78 15.75
Turning Diameter Max. 4.72 7.87 7.08
Swing Over Cross Slide 4.72 4.72 4.72
Turning Length Max. 3.54 8.26 5.9
X-Travel 8.26 9.84 11.8
Z-Travel 7.08 9.25 18.1
Nose Type A2-4 A2-5 A2-6
Chuck 5 6 8
Bar Capacity 1 1.65 2
Speed Range (rpm) 6,000 5,000 5,000
Drive Motor** (hp) 5 7.5 15
Turret (Type) gang gang gang
Unit= inch | *Optional accessory | **30 minute rating

Available Models: 8, 10, 12
