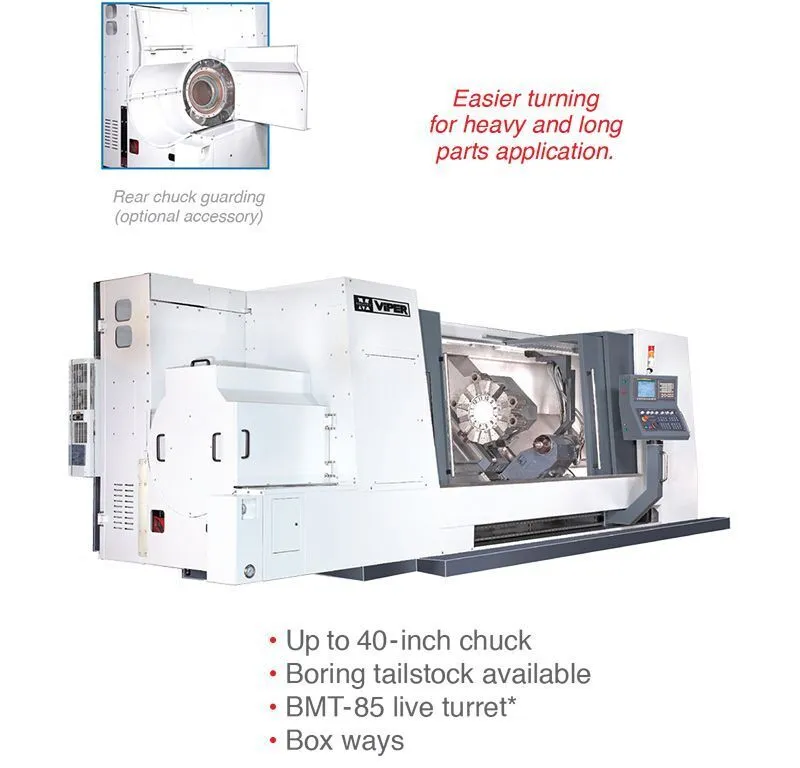

Accommodates long and heavy workpieces; provides deep hole boring capacity with a large diameter.
Performance Specifications
Machine Model 40A / 40B+ 50A+ / 50B 70A
Swing Over Bed 39 39 45
Turning Diameter Max. 35 35 39
Turning Length Max. 37 / 77 / 116 / 155
X-Travel 17 17 21
Z-Travel 39 / 78 / 118 / 157
Through Hole 5/8 10/12 10
Nose Type A2-11 / A2-15 A2-20 A2-15
Speed (rpm) 2500 / 1890 1100 / 850 750
Motor** (hp) 60 60 60
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 40A, 40B+, 50A+, 50B, 70A
