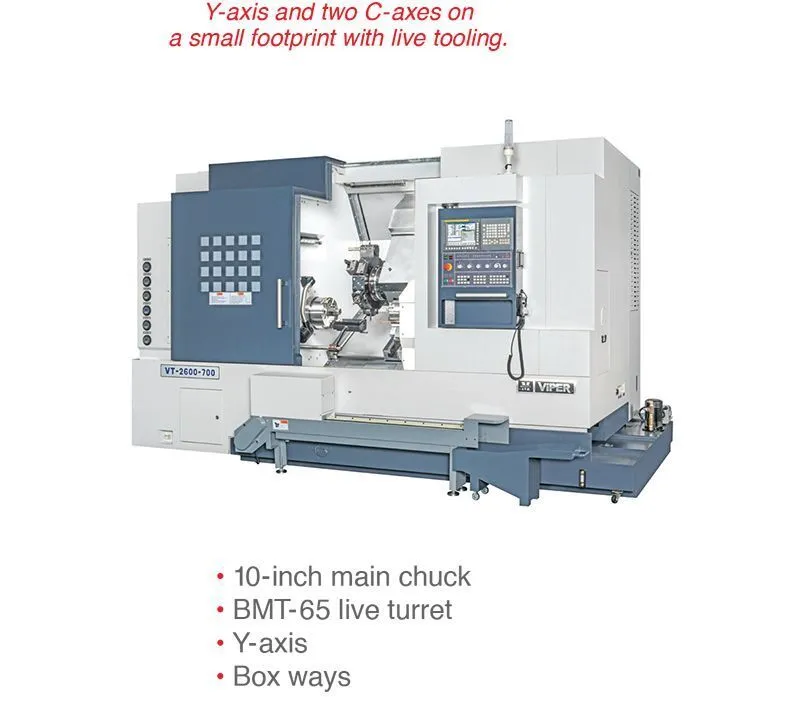

MIGHTY VIPER VT 2600/700YMS - Y-axis and two C-axes on a small footprint with live tooling.
ConditionNew
New
Perform turning and milling. Turret is seated on a 30º Y-slide that moves bi-directional on a 30º X-sliding saddle offering single or two axes simultaneous movement.
Performance Specifications
Swing Over Bed 33
Turning Diameter Max. 14
Turning Length Max. 28
Slideway Slant Angle 30° + 30°
XYZ-Travel 7.8 × ±2.0 × 31.3
W-Travel (Sub) 28.9
Nose Type A2-8
Through Hole 3.5
Bar Capacity 3.1
Motor Main Spindle** (hp)30
Motor Sub Spindle** (hp) 30
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 2600/700YMS
