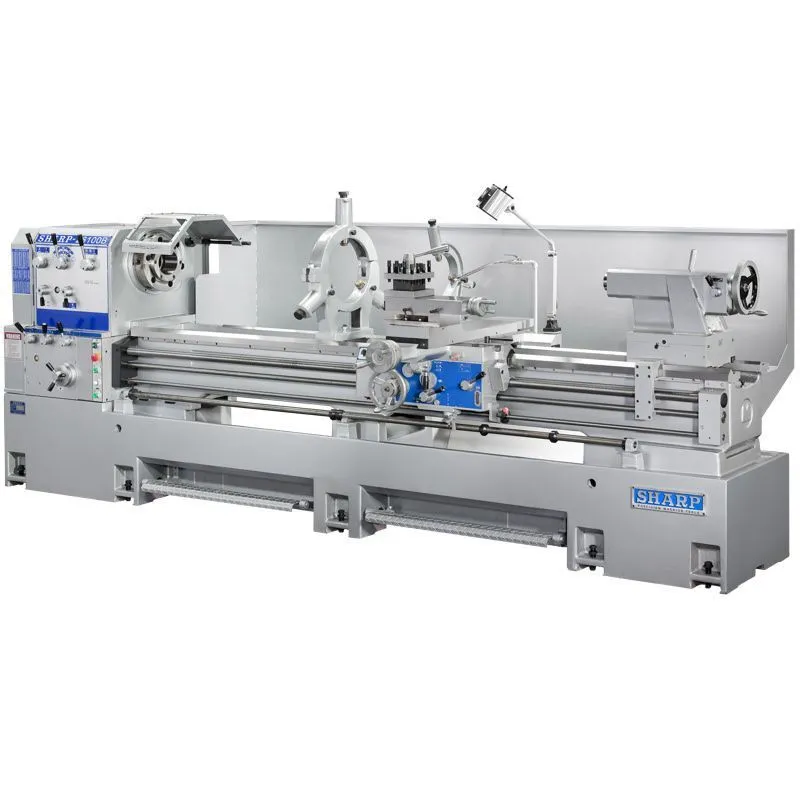

New SHARP 2260B | Precision Lathes

SPECIFICATIONS:
 Capacity
 Swing Over Bed 22”
 Swing Over Cross Slide 13.2”
 Center Height 11”
 Swing Over Gap 31”
 Distance Between Centers 60”
 Headstock

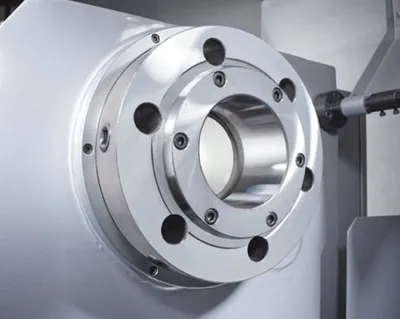

 Spindle Nose Type D1-11 Camlock
 Spindle Bore 4.5”
 Spindle Speeds (12) 10-1,000 rpm
 Taper of Spindle Bore MT#7
 Taper of Center MT#5
 Threads and Feeds
 Longitudinal Feeds – in/rev (18) 0.0022 - 0.032”
 Cross Feeds – in / rev {#} 0.00026 –0.035” {17}
 Inch Threads (#) 2-56 tpi {44}
 Metric and Module Threads {#} 0.5-14mm {24}
 D.P. Threads (36) 4-56 mm
 Leadscrew Pitch, Diameter 4 tpi, 1-1/2”
 Carriage
 Cross Slide Travel 14.75”
 Compound Rest Travel 8”
 Compound Width 6”
 Bed
 Bed Width 15-3/4”
 Bed Length
 Tailstock
 Quill Travel (graduated) 6-1/2”
 Quill Diameter 3”
 Quill Taper MT#5
