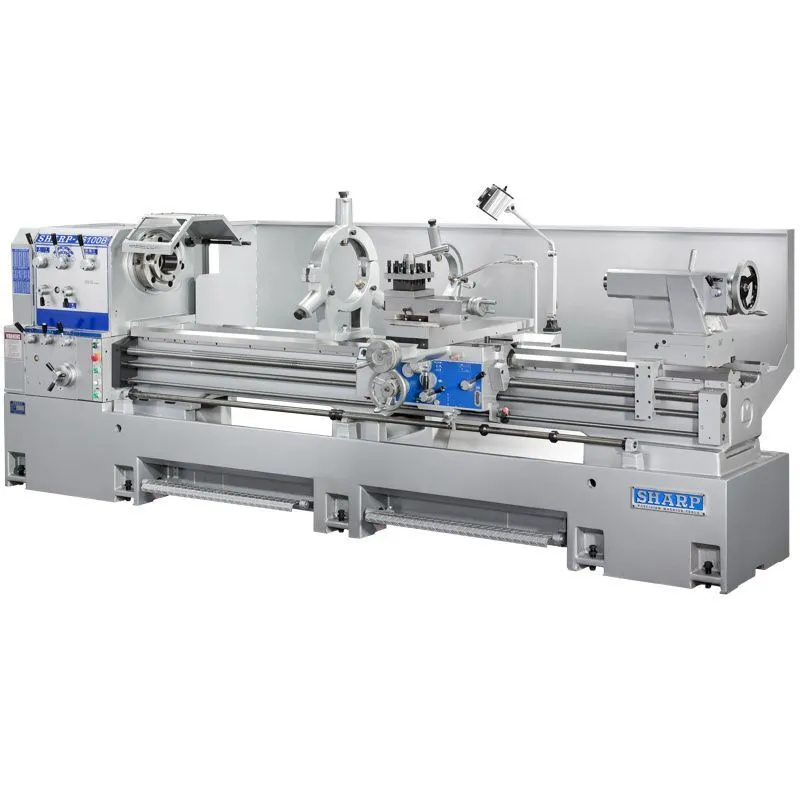

New SHARP 2280B | Precision Lathes
ConditionNew
New

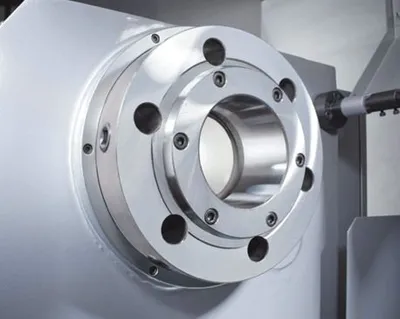

This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
Standard Accessories
4-jaw 16″ chuck, face plate (20″)
Steady rest (4″ – 11.5″), 4 ways tool post
Coolant system, halogen light • 4-way carriage stop
Splash guard & 16″ chuck guard
Tailstock, follow rest, tool kit
Rapid transverse on longitudinal (on 100″centers distance and up only)
Wired 220V or 440vV
Optional Accessories
3-jaw chuck, different sizes
4-jaw chuck, different sizes
Taper attachment
Chuck guard w/ limit switch
Tool guard w/ limit switch,at front of compound
Lead screw wrapped around screw (accordion style)
Lead screw guard, cover entire front of machine bed
Safety cover at the end of spindle
UL or CSA electrical components, UL spindle motor, CSA pump motor
Steady rest
Quick change tool holder (aloris) (7 pcs holder) 1.25″ tool
Live center – (dual bearing) MT #5
5C lever collet closer
5C collet set (1/8 to 1/16″ x 1/16″) (16 pcs) • Micrometer carriage stop
Roller jaws set (3 pc)
