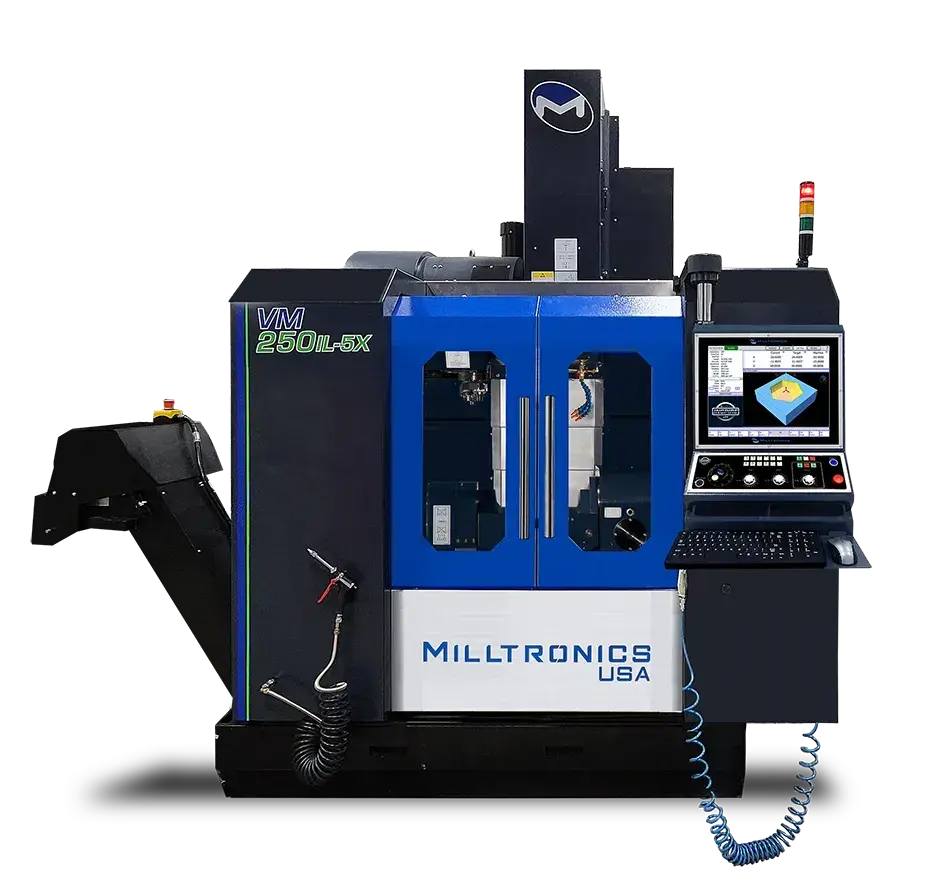

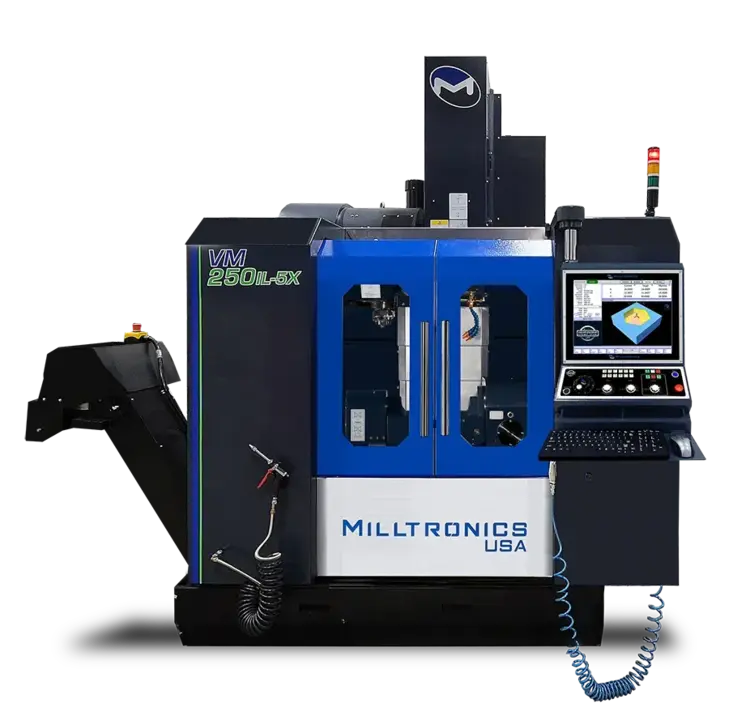

New MILLTRONICS VM250IL-5X | Vertical Machining Centers (5-Axis or More)
$199,995.00 USD
ConditionNew
New
The VM250IL-5X is the largest of Milltronics’ 5-axis machining centers with X, Y, Z travels of 30 x 20 x 20.5 inches. Its rotary table offers +30°/-110° of A-axis rotation and 360° in the C-axis. This vertical, linear way machining center features a 12,000-RPM, BIG–PLUS® ISO No. 40 spindle and a 40-tool ATC. An added benefit is its user-friendly INSPIRE+ control, which provides improved surface finish and cycle times, an advanced proprietary motion engine, and a 19-inch, color, LCD touch screen.
Machine Specifications
CAPACITY
Travels
30 x 20 x 20.5 in
C-Axis / A-Axis
360° / +30° / -110°
Table Working Surface
9.8 in diameter
Max. Weight on Table
440 lbs
Table T-Slots
0.47 in x6
SPINDLE
Spindle Taper
BIG-PLUS® ISO No. 40
Spindle Speed
12000 RPM (15k Optional)
Spindle Power
15/10 HP
Spindle Nose to Table
3.5 / 24 in
AUTOMATIC TOOL CHANGER
Tool Capacity / Type
40 / Double arm
Tool Shank
CT40
Max. Tool Diameter
3 in
Max. Tool Length
9.84 in
Max. Tool Weight
15.4 lbs
Retention Knob
MAS60
MOTION
X/Y/Z Rapid Traverse Rate
1200/1000 IPM
Max. Cutting Feed Rate
500 IPM
C-Axis / A-Axis Rotational speed
25 RPM
Positioning Accuracy
+/- 0.0002 in
General Details
Machine Weight
13,068 lbs
Machine Height
123.4 in
Footprint
86 x 106 in Normal Operating (W x D)
Power Required
26kVA / 31A
Voltage Required
480 Volts / 3 Phase
INSPIRE+ Control
19-Inch Color LCD Touch Screen Display
Linear Roller Guideway Construction
40-Pocket Double-Arm ATC
12,000-RPM Spindle
BIG–PLUS® Dual-Contact Spindle
24/10HP Dual-Speed Spindle Motor
Spindle Load Meter
Spindle Air Purge
Automatic Positive Displacement Lubrication System
Chip Conveyor Chip Removal System
Chip Washdown System
Full Enclosure with Side Doors
Flood Coolant with Oversized Tank and 8-Nozzle Spindle Coolant Ring
1200-IPM Rapid Traverse Rate
Dual-Enclosure Work Lights
Rigid Tapping
Spare “M” Function
Solid Model Graphic Display
120-GB Solid State Hard Drive
DXF File Import
Rest Roughing Machining Cycle
Add-on Options
ChipBoss™ Trochoidal Milling Cycle
Milltronics Shop View (MSV) – Internet-Based Machine Monitoring
Digital Setup Assistant (DSA)
Thermal Head Mapping – Thermal Sensors in Head with Algorithms
DGI-Desktop PC Software for Programming and Training
70-mm BIG–PLUS® Dual-Contact 15,000-RPM Spindle with Ceramic Bearings
BT Style Tooling
Programmable Air Blast
Programmable Spray Mist System
Complete 300-PSI Coolant Thru Spindle System – CTS Ready Kit
Spindle Chiller
Electrical Cabinet Air Conditioning
Lift-Up Chip Conveyor Upgrade Replaces Auger
Conveyor Paddle Kit Assist with Light/Floating Chips
Factory Machine Installation and On-site Training (USA Only)
