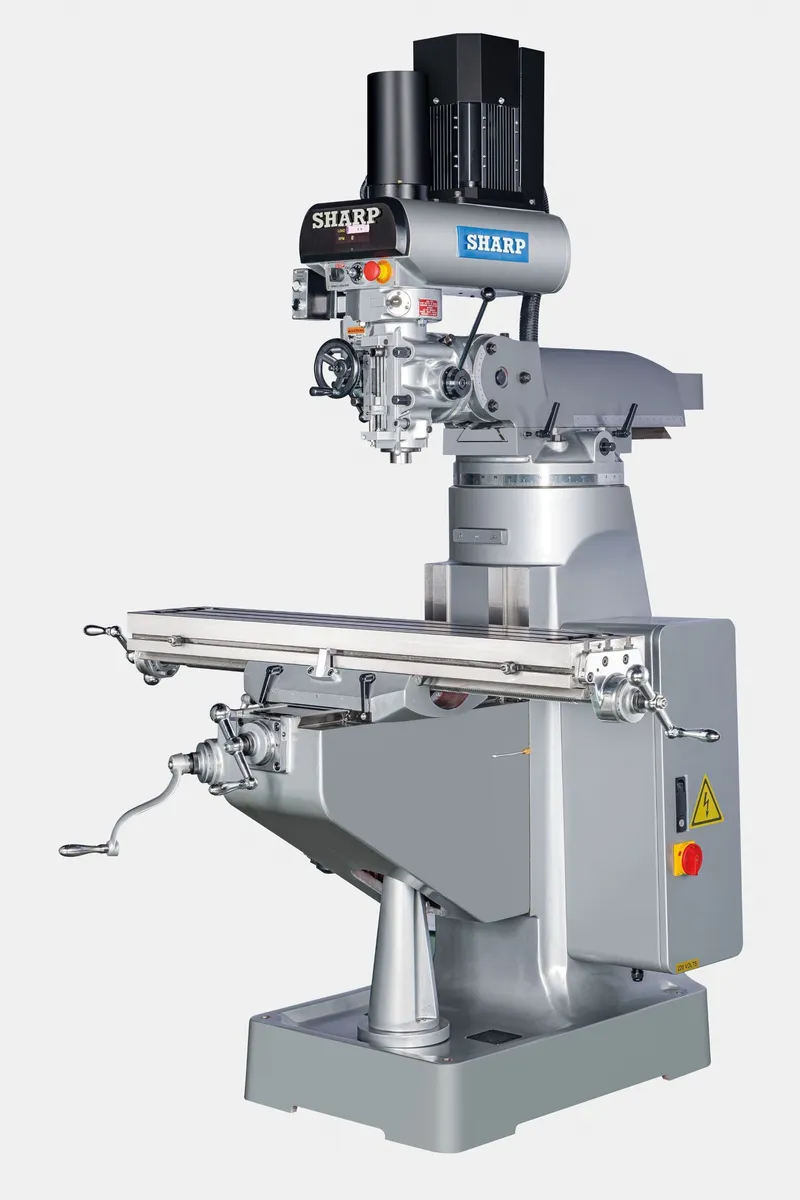

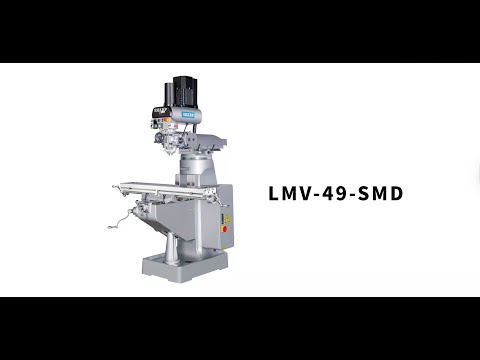

The NEW SHARP LMV-49-SMD is a newly designed knee-type vertical milling machine that integrates a Servo Motor Drive with many outstanding and unique features, making
it the best choice on the market.
The LMV49SMD is our newest invention, featuring an 11hp servo motor that eliminates the high- and low-gear systems and comes with a power drawbar as standard. This translates to fewer parts in the head subject to wear and tear.
WHAT MAKES IT THE BEST KNEE MILL ON THE MARKET
Servo Motor Drive
-The R-8 spindle is driven by a servo motor, providing a speed range of 65 to 4,500 rpm.
-An 8.5kW spindle motor that is equivalent to an 11HP drive, which will increase productivity via larger depths of cuts in milling, drilling, boring, and tapping applications.
-Fewer working parts to maintain by eliminating High/Low transmission gears, so the mill is easier to operate, and extends the life of the machine.
- Adjusts the speed and torque dynamically, allowing it to run quieter and with less vibration than traditional variable speed drive mills for improved surface finish and extended tool life.
- Comes with a digital display, and the speed change is controlled by turning a dial to the desired speed.
- Comes standard with a load meter, which provides real-time monitoring of spindle power usage, offering several benefits like preventing tool breakage, improving cutting conditions, and optimizing machine performance
- High Performance in Intermittent Use - Servo motors are ideal for applications with start-stop operations. They can ramp up and down quickly without consuming excessive energy.
- Low Energy Loss - Servo motors are designed to minimize energy loss due to heat and friction, contributing to their overall efficiency.
The mill comes equipped with a transformer located in the electrical control cabinet, which conveniently provides 110V power to DRO or X, Y, Z-Knee power feeds.
- Machine Features: Table size: 9" × 49" Travel: 36" longitudinal, 12.2" cross Table Size 9” x 49” Table Travel 36” X-Axis & 12.2 Y-Axis Power Draw Bar Standard, Meehanite Casting Front & Rear Way Covers One-Shot Lubrication System
