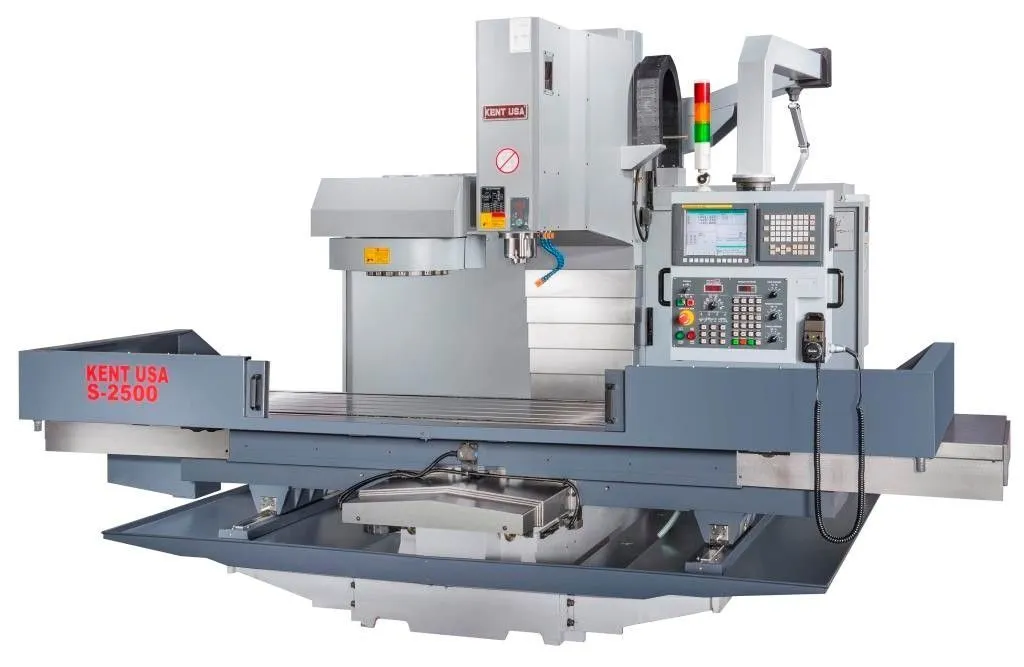

New KENT USA S-2500 | CNC Toolroom Bed Mills
ConditionNew
New
Discover precision engineering with the KENT USA S-2500 CNC Toolroom Bed Mill. Featuring a 30”x112” table, 8000 RPM CAT-40 spindle, and Fanuc 0iMF CNC. Enjoy superior rigidity with Meehanite casting and rapid feed rates of 393”/min. These are geared towards facilities that require high-production capacity with high speed and accuracy. In addition, this line of milling machines is perfect for workpieces that require more Z-axis clearance and higher payload.
GENERAL SPECIFICATIONS
Table size 30” x 112”
Longitudinal travel 98.4”
Cross travel 33.8”
Vertical travel 28”
Spindle center to column 35”
Spindle nose to table 3” to 31”
Rapid feed rates (X, Y, Z) 393”/min
Spindle motor: 15 HP
Spindle taper: CAT-40 (Opt. BT-40)
Spindle speed: 8000 RPM
Servo Motors (X and Y axis): Ais-30i/7.0KW/30Nm
Coolant pump: ½ HP
Dimensions 169” x 89” x 100”
Gross weight 19,069 LBS
Net weight 18,298 LBS
STANDARD EQUIPMENT
Fanuc 0iMF CNC (3 axis)
Auto-lubrication unit
Flood coolant system
20 tool carousel type ATC
15 HP AC Servo Spindle Motor
Meehanite casting for superior rigidity
Hardened and Ground Square Y and Z-axis ways
Hardened and Ground table top and dovetail ways
Precision Ground ballscrews on X, Y and Z-axis
Ultra precision ground spindle, ABEC-7 bearings
Hardened and Ground spindle spline and taper
Auto Lube system with metered Check valves
5 pcs telescopic guards on 3 axes
Built in Coolant system and Chip pan
Halogen work light
OPTIONS AND ACCESSORIES
Upgrade to #50 taper spindle*
6” angle-lock vise
8” angle-lock vise
12” Rotary Table (vertical & horizontal)*
Clamping kit (52 pcs)
Rust-lick G25 coolant (1 gallon, mixes 1:30)
