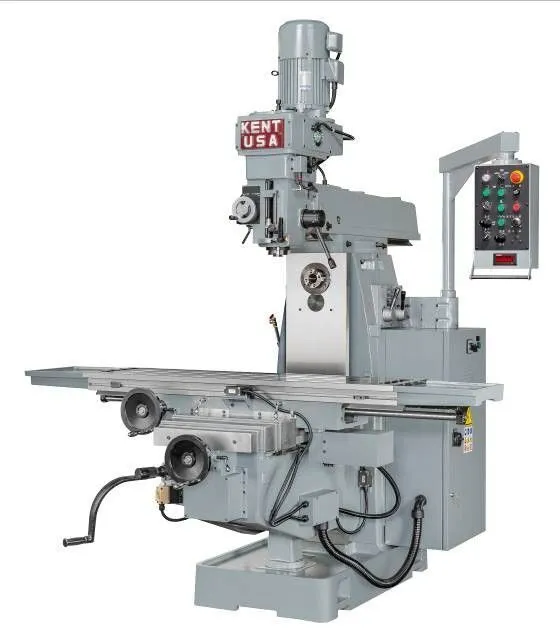

New KENT USA KTM-VH500EVS | Vertical & Horizontal Mills
ConditionNew
New
Kent USA Combo Horizontal/Vertical Mills offer both the capabilities of a Vertical Mill and a Horizontal Mill in one design. Changing the setup from one operation to the other is quick and simple. These mills are equipped with hard-chromed dovetail ways or hardened and ground box ways for superior wear resistance and separate motors drive the vertical spindle and horizontal spindle. Kent USA Combo H/V Mills offer both knee and bed type variants. Table sizes range from 12″ x 51″ to 27.6″ x 102.4″ while table travels range from 39.4″ x 14″ x 17.7″ to 78.7″ x 41.3″ x 39.4″.
STANDARD FEATURES:
5 HP horizontal spindle motor, 9 speed ranges. 5 H.P. vertical spindle motor, inverter variable speed vertical head
14.6” x 57.8” hardened and ground table top
Saddle and knee with hardened and ground square (box) ways
Precision ballscrews in X & Y axes
X & Y axes driven by 1 HP Yaskawa AC servo motor, Z axis driven by 1/2 HP AC motor
Precision bored and ground milling head with super precision ABEC-7 bearings
Meehanite® casting, with built in coolant reservoir in machine base
Coolant system and chip tray
Centralized automatic lubrication, with metered check-valves
OPTIONAL ACCESSORIES:
DRO (2-axis, 0.0002” resolution)
DRO (3-axis, 0.0002” resolution)
Air power drawbar (vertical spindle)
Angle-lock vise (6”)
Angle-lock vise (8”)
Rotary table (12”, vertical and horizontal)
Clamping kit (52 pc)
ER-40 Collet chuck system (15 pc)
Upgrade to 440V power with 8KVA transformer
