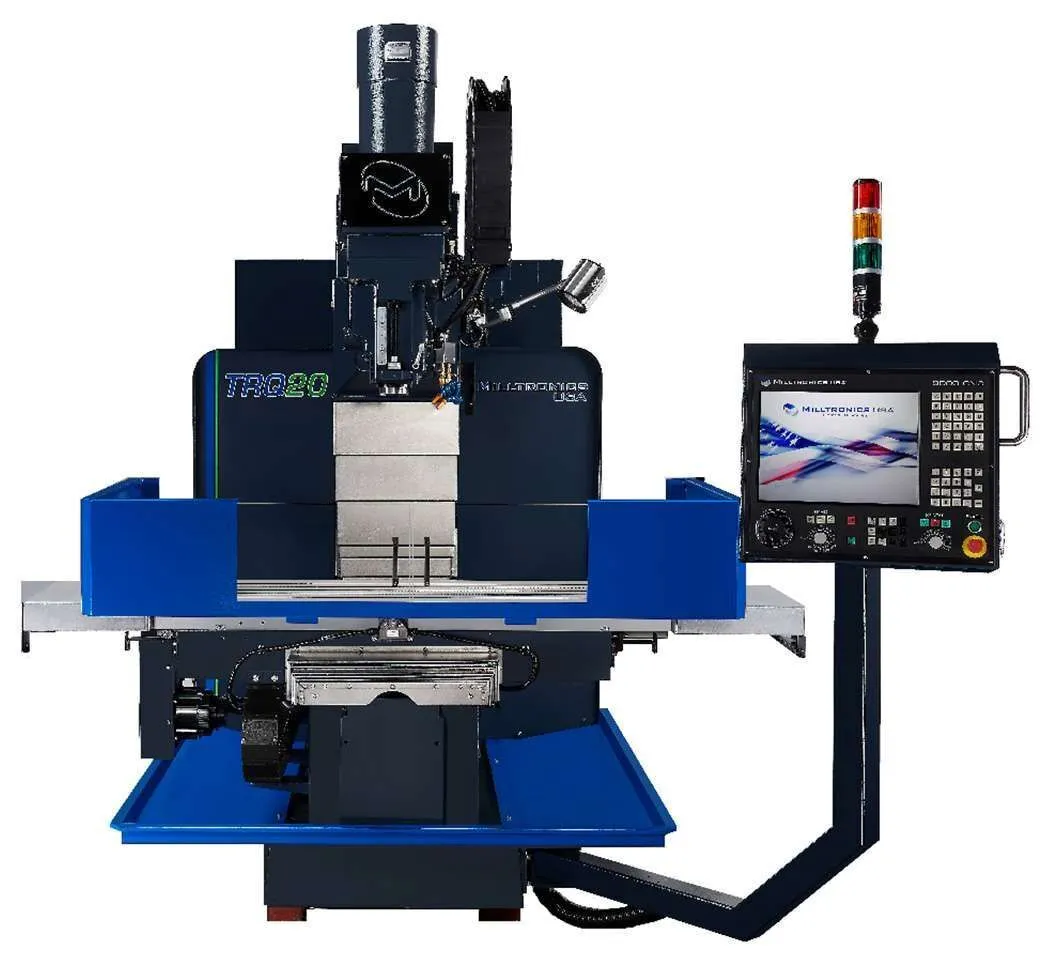

New MILLTRONICS TRQ20 | CNC Toolroom Bed Mills
ConditionNew
New
The TRQ20 is designed for versatility and precision, featuring a robust Meehanite cast iron frame and heavily ribbed castings for superior dampening during high-speed machining. Its 54″ x 16″, precision-ground table is supported by hardened and ground square box ways with Turcite surfaces to maintain accuracy and eliminate deformation.
The 4.125″ quill with 6″ of travel, CT40 taper, and ±15/45 tilting head provides exceptional flexibility. A belt-driven spindle with an 8:1 back gear delivers high torque for demanding applications, while a powered drawbar ensures secure tool retention. High-precision ballscrews and belt-driven AC servo motors maximize performance and reliability, making the TRQ20 ideal for a range of machining needs.
Standard Features
• Milltronics INSPIRE+ CNC Control
• 19" color LCD touch screen display
• Solid model graphic display
• 120 GB solid state hard drive
• DXF file import
• Networking
• Solid Box Way Bed &Column
• Programmable RPM spindle
• X/Y axis metal way cover construction
• Auto lubrication
• Rigid Tap (high gear only) CT40
• 10/7.5 HP spindle motor
• 6” manual quill travel
• Spindle load meter
• High Torque 8:1 back gear
• LCD hour meter
• ±15/45 head tilt
• Power drawbar
• Rest roughing machining cycle
• One-year warranty
